i-99 Cesare Cantagalli Windsurf Booms Collection

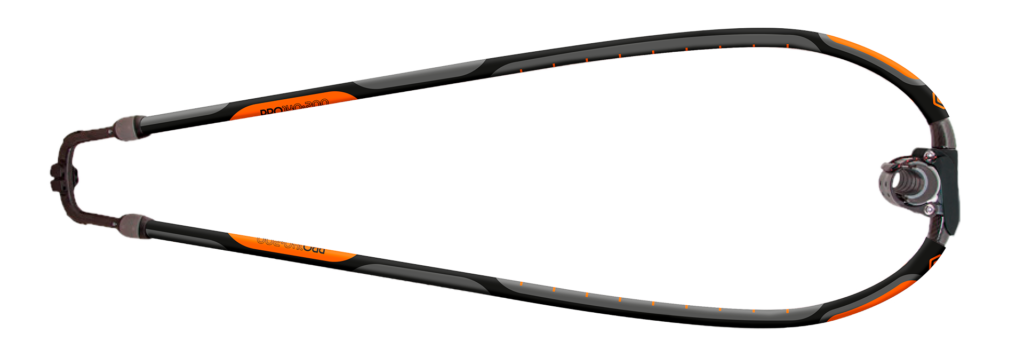

PRO – CARBON BOOM

The PRO is our high performance top of the line boom made with high modulus carbon pre-preg full monocoque body and tail extension with extreme rigidity and lightweight.

The diameter and the the grip varies according to the discipline and related boom size; 25mm diameter for the 140, / 27mm for the 160 and 29 for the 180 boom.

With a high friction contact surface against the mast, a robust rope hook and a boom lever to allow effortless high-tension when trimming and locking the boom in position.

The double pin lock system provides a very safe and tight connection between the boom monocoque body and the carbon tail-end, even when extended in full length.

Specifications

SizeExtensionDiameterTubeInner widthWeightLock
140-20060 cm25 mmTapered39 cm2.4 kgDouble Pin
160-22060 cm27 mmTapered42 cm2.5 kgDouble Pin
180-24060 cm29 mmTapered49 cm3.1 kgDouble Pin

Features

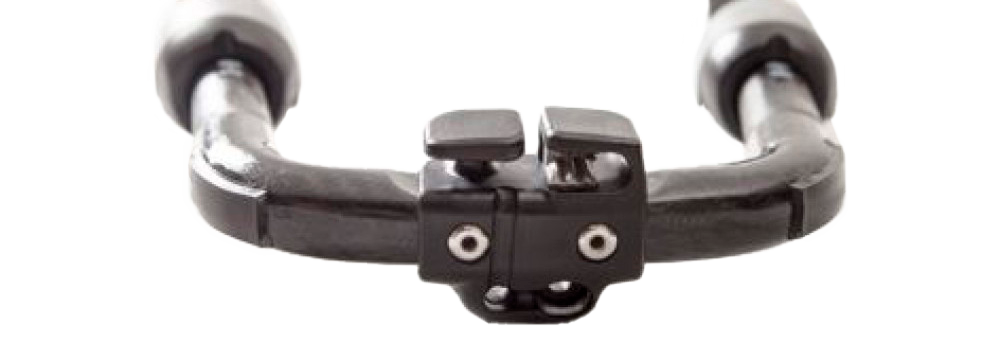

EXTERNAL TAIL FITTINGS
External tail fittings provide two main advantages compared to a integrated fitting solution:
1. Lower weight.
2. Stronger tail end. No weak points in the mould.

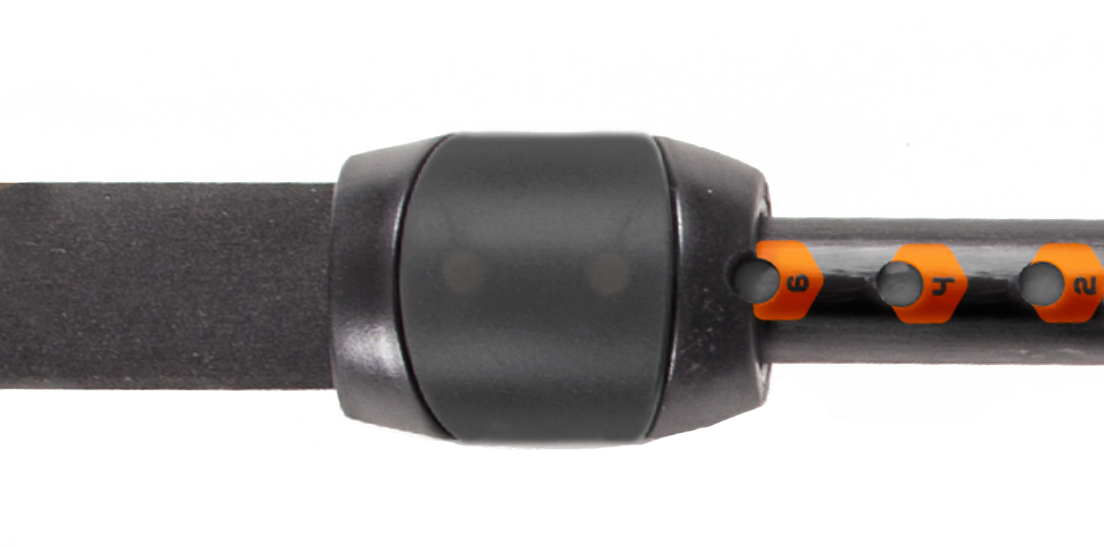

DOUBLE PIN LOCK
For precise load distribution, the Pro Carbon boom series all feature the double pin lock system for a stiff connection between the boom body and tail end, even when maximally extended.

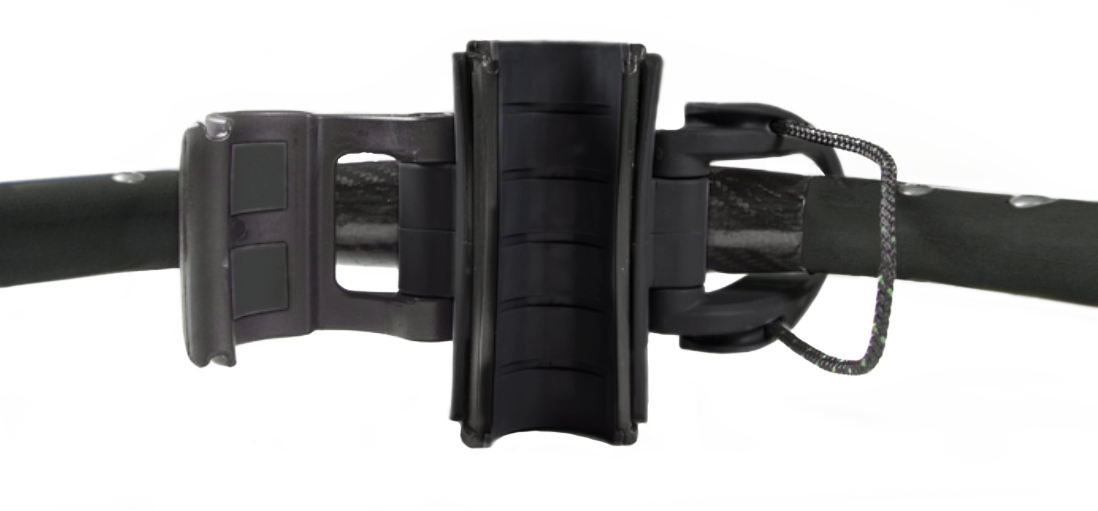

RDM SHIM
All PRO carbon booms include a integrated shim for RDM masts fitting.

THE BOOM HEAD
Designed for maximum grip and tight-lock to the mast with a high friction contact surface. The PRO Carbon boom will stay in place even during hard landings and thanks to the heavy-duty rope hook will ensure stability and a boom lever that allows you to effortless apply tension when trimming the boom to in position.

OUTLINE AND TAIL WIDTH
The outline and width of the boom deliver the balance between power and control. The outline on the shorter booms are designed to be closer to the rig for control specifically for Wave, Freestyle  and Foil sails. The 180 size booms wider outlines better suited for freeride sails and speed control.

A wider tail generates more power while a narrower tail provides high control. This positions varies with the wind strength and individual windsurfing disciplines, for this reason, each boom size is individually designed and developed.

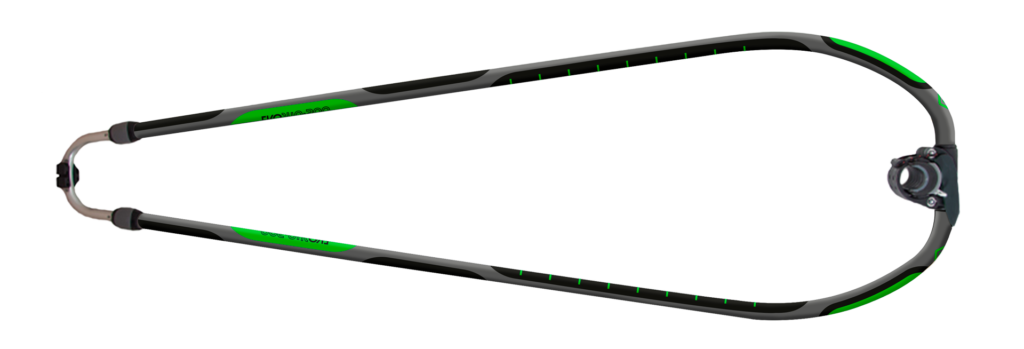

EVO – MONOCOQUE ALU BOOM

Just Plug&Play…

The EVO is our all-round boom made in Monocoque aluminum. From entry level to progressive freeriding and Bump&Jumping

Stable quick lock front compatible on both RDM and SDM masts with a slim diameter grip also suited for riders with smaller hands.

The double pin lock system provides a very stiff and firm connection between the boom body and tail-end, even when extended in full length.

Specifications

SizeExtensionDiameterTubeInner widthWeightLock
140-20060 cm27 mmNon Tapered38 cm2.6 kgDouble Pin
160-22060 cm29 mmNon Tapered42 cm2.9 kgDouble Pin
180-24060 cm29 mmNon Tapered49 cm3.1 kgDouble Pin

Features

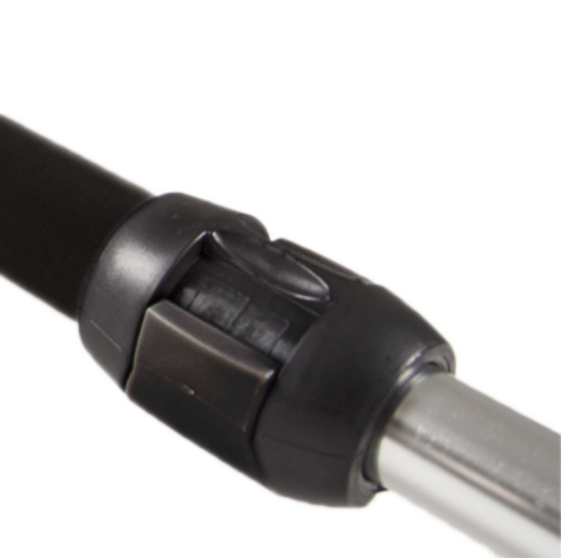

DOUBLE PIN LOCK
The double pin lock system guarantees a wide distribution load and a stiff connection between the boom body and tail end, even when maximally extended.

RDM SHIM
The integrated shim for RDM masts secure a tight and firm fit on both RDM and SDM masts.

THE BOOM HEAD
Designed for maximum grip and tight-lock to the mast with a high friction contact surface. The boom will stay in place even during hard landings and thanks to the robust rope hook will ensure stability and a boom lever that allows you to effortless apply tension when trimming the boom to its correct position.

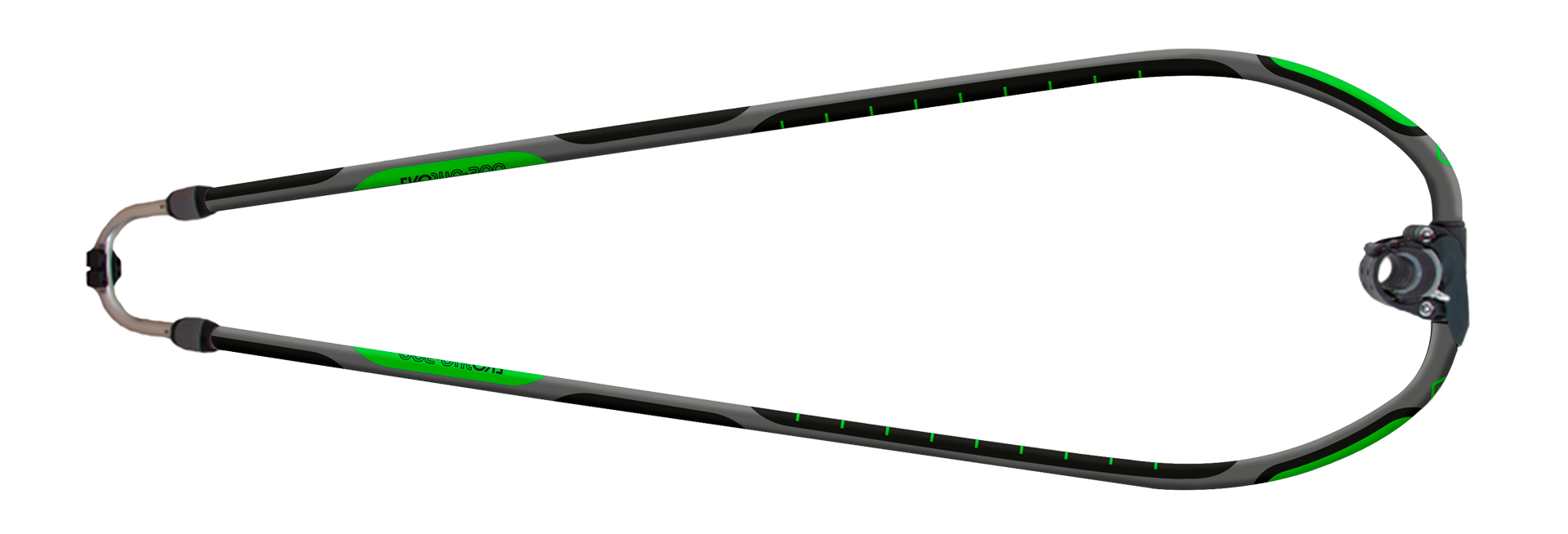

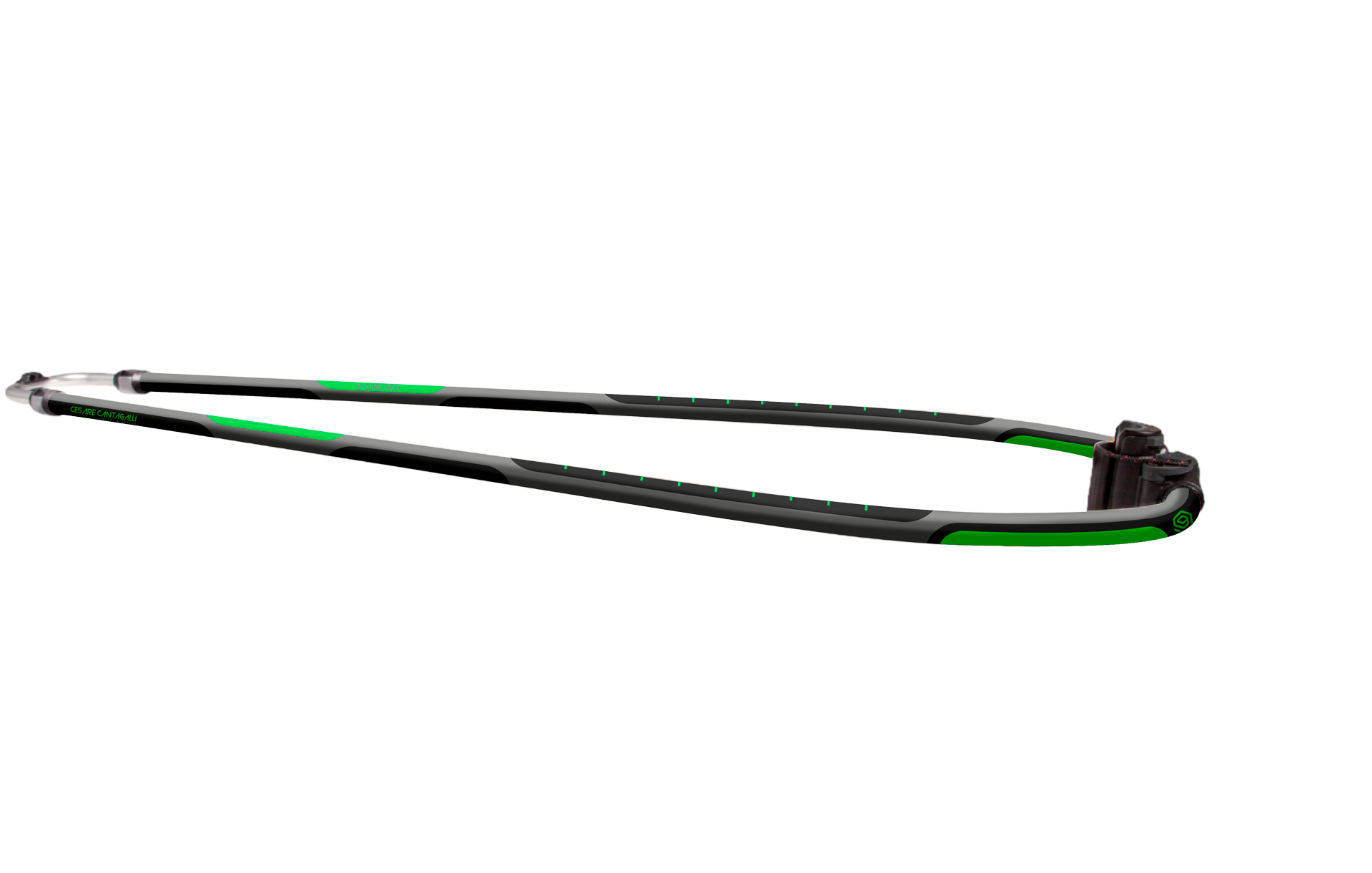

BOOM OUTLINE
The outline and width of the boom deliver the balance between power and control. The outline on the shorter booms are designed to be closer to the rig for control for specific bump&jump sailing. The 180 booms wider outlines are more suited for freeride sails for speed control and max air flow efficiency. A wider tail generates more power while a narrower tail provides high control. This positions varies with the wind strength and individual windsurfing disciplines, for this reason, each boom size is individually designed and developed.

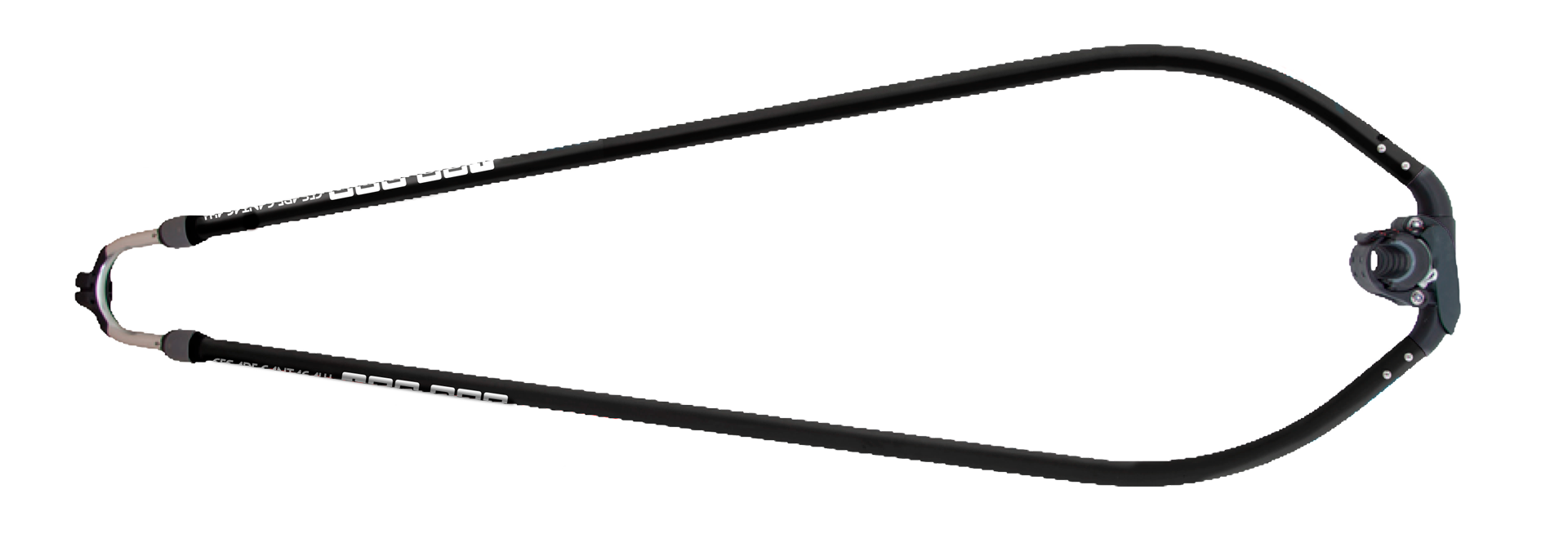

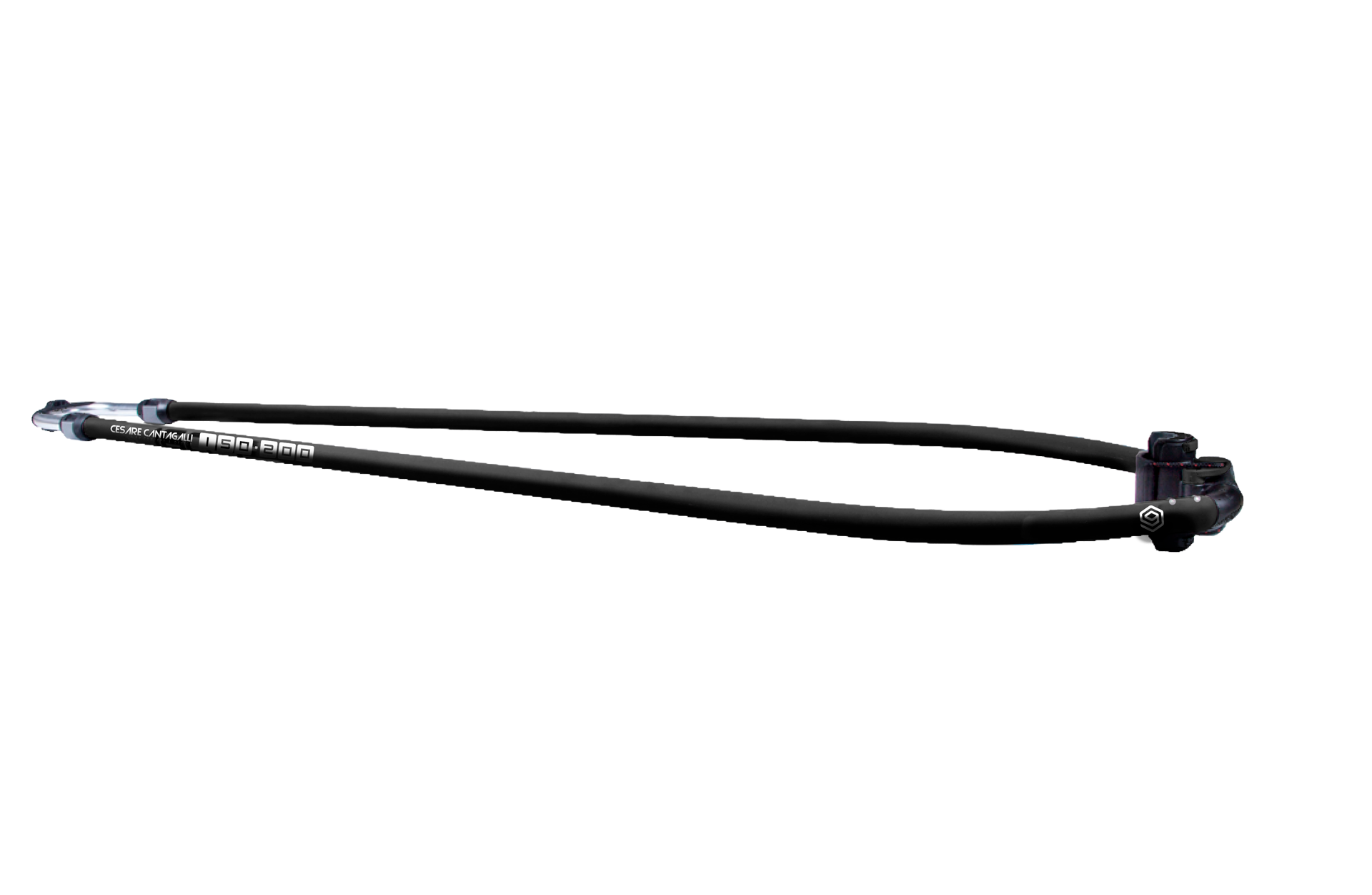

PLAY SERIES – ALU BOOM

Enjoy your first Windsurfing ride…

The PLAY Boom series is our entry level all-round boom proposal for those approaching first Windsurfing experiences.

Stable quick lock front compatible on both RDM and SDM masts with a slim diameter grip also suited for riders with smaller hands.

The double pin lock system provides a very stiff and firm connection between the boom body and tail-end, even when extended in full length.

Specifications

SizeExtensionDiameterTubeInner widthWeightLock
110-16050 cm25 mmNon Tapered--Double Pin
140-19050 cm27 mmNon Tapered38 cm2.6 kgDouble Pin
160-21050 cm27 mmNon Tapered42 cm2.9 kgDouble Pin
180-23050 cm27 mmNon Tapered49 cm3.1 kgDouble Pin

Features

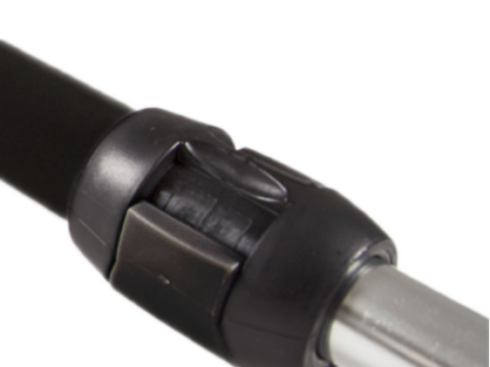

DOUBLE PIN LOCK
The double pin lock system guarantees a wide distribution load and a stiff connection between the boom body and tail end, even when maximally extended.

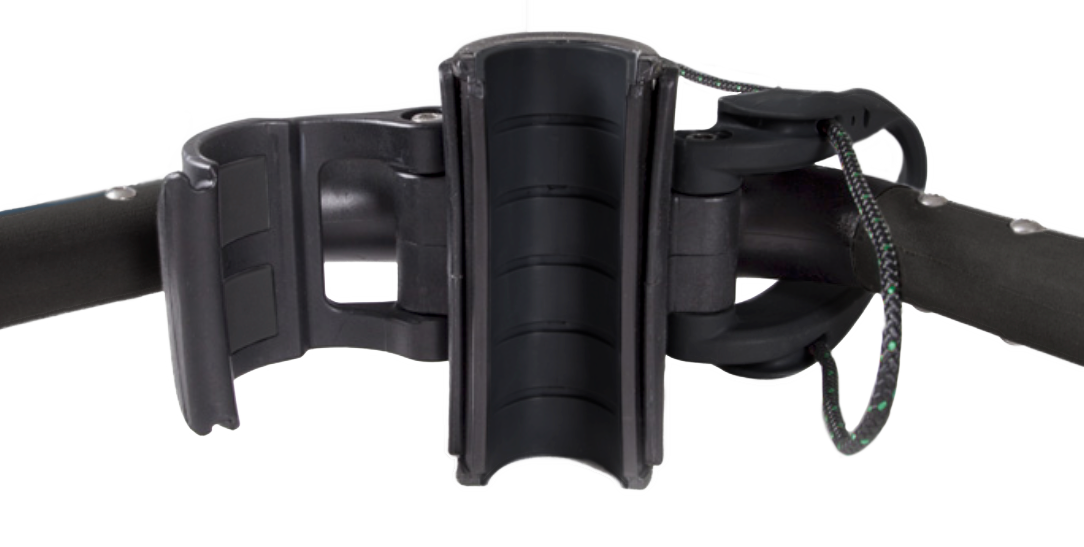

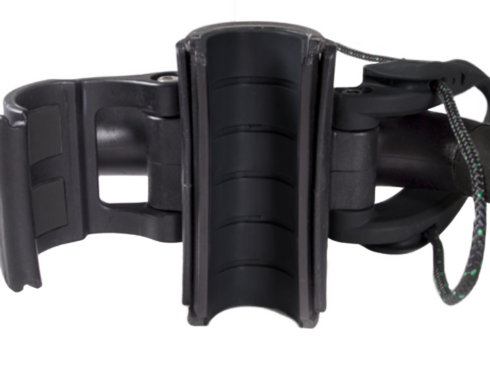

RDM SHIM
The integrated shim for RDM masts secure a tight and firm fit on both RDM and SDM masts.

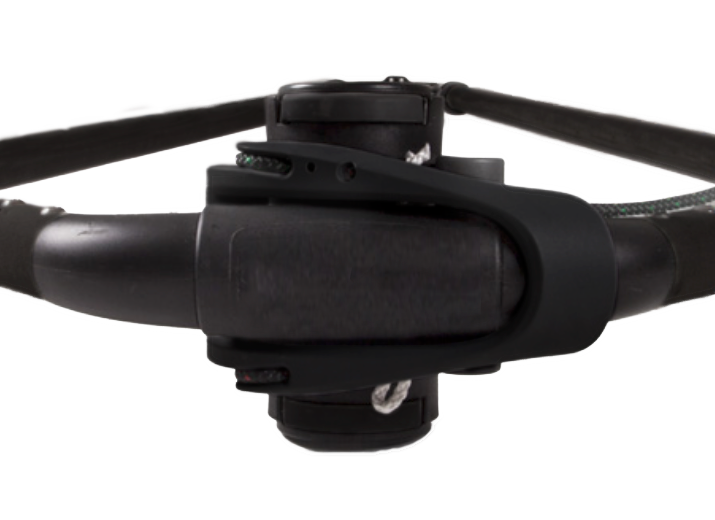

THE BOOM HEAD
Designed for maximum grip and tight-lock to the mast with a high friction contact surface. The boom will stay in place even during hard landings and thanks to the robust rope hook will ensure stability and a boom lever that allows you to effortless apply tension when trimming the boom to its correct position.

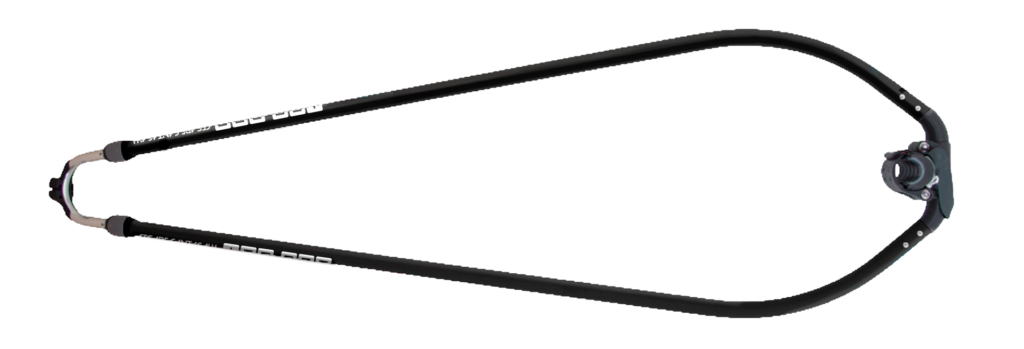

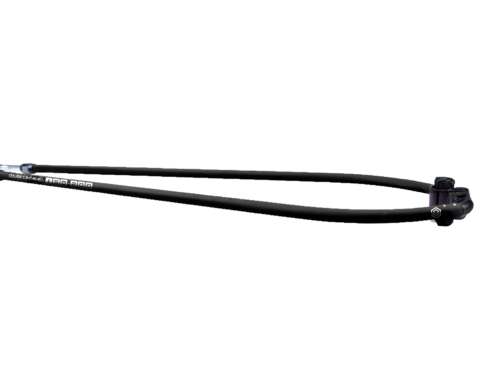

BOOM OUTLINE
The outline and width of the boom deliver the balance between power and control. The outline on the shorter booms are designed to be closer to the rig for control for specific bump&jump sailing. The 180 booms wider outlines are more suited for freeride sails for speed control and max air flow efficiency. A wider tail generates more power while a narrower tail provides high control. This positions varies with the wind strength and individual windsurfing disciplines, for this reason, each boom size is individually designed and developed.
